| Yilin Bearing produces and sells rod end bearings, spherical plain bearings, metric Hydraulic Components, cam follower and other accessories parts of bearings products |

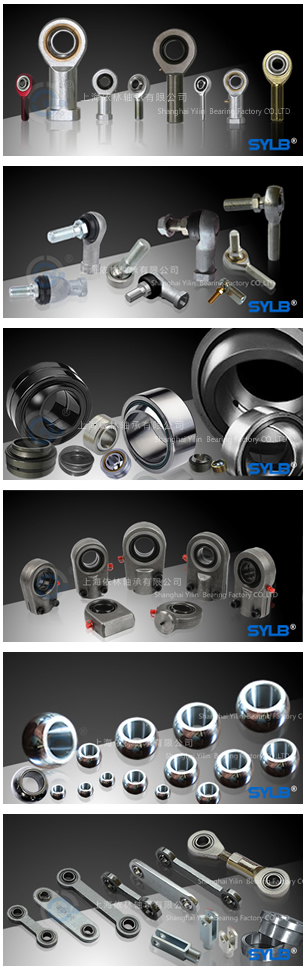

 Rod Ends |
|
● SYLB Rod Ends have two categories: Metric and Inch
● SYLB Rod Ends Bearing provide both machining type and precision forging type, including 2 piece parts and 3
piece
parts. Bore diameter is 2-80mm for metric dimensions, 0.19-1 inch for inch dimensions. Divided into
requiring maintenance and maintenance free in each categories,
● Rod end body surface can be Zn, Ni.Cr3+coated. |
| Spherical Plain Bearings |
|
● SYLB Spherical Plain Bearings have two categories: Metric and Inch
● SYLB Spherical Plain Bearing includes requiring maintenance (steel–on-steel) & maintenance-free. Bore
diameter is 4-200mm for metric dimensions, 0.19-4.75 inch for inch dimensions. Different sliding contact surface
combinations with inner rings and out rings can be made of different materials.
● The structure is divided into two kinds: standard type and overloading, in addition, the inner ring with spherical,
hemispherical and steps. |
| Metric Hydraulic Components |
|
● SYLB manufactures metric hydraulic components,the housings has precision forgings and precision
castings,the body surface can be sandblasted.
● Bore diameter is 17-120 mm. |
| Cam Followers |
|
● SYLB Cam Followers have two categories: Metric and Inch,divided into Standard stud,Heavy stud,Yoke type,
Caged roller followers. Produced outer diameter is 16-110mm for metric dimensions and 0.5-4 inch for inch
dimensions. |
| Various Parts |
|
● SYLB provide over twenty different series of Rod end balls of Plain Bearings. The balls have two categories:
Metric and Inch, produced bore diameter is 3-40mm for metric dimensions and 0.19-1 inch for inch dimensions.
● SYLB provide various steel ball,two categories: Metric and Inch,metric sizes range from 3 mm to 25 mm.Inch from
1/8 to 1,carbon steel,chrome steel and stainless steel and other materials are available.
● SYLB provide various Double Joints, Clevises, Bushings and Shafts. |
|
|
|
|
